Visualization of your t:slim X2 Control IQ and Basal IQ data is now available on the Glooko Web App!
NOTE: Control IQ and Basal IQ data visualization is NOT currently available on the Glooko Mobile App. Control IQ and Basal IQ data visualization will be limited to the Glooko® Web App only
Viewing Control IQ Data
Tandem Control IQ technology automatically adjusts insulin levels based on Dexcom G6 continuous glucose monitoring (CGM) readings to help prevent hyperglycemia.

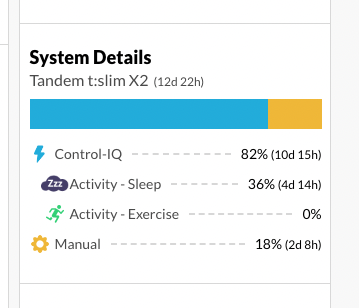

When the Glooko platform detects Control IQ data enabled on the uploaded insulin pump - a new data widget will appear in your Glooko® Summary page, listed as System Details. These are the Control IQ use metrics for the selected time period in your Summary tab.

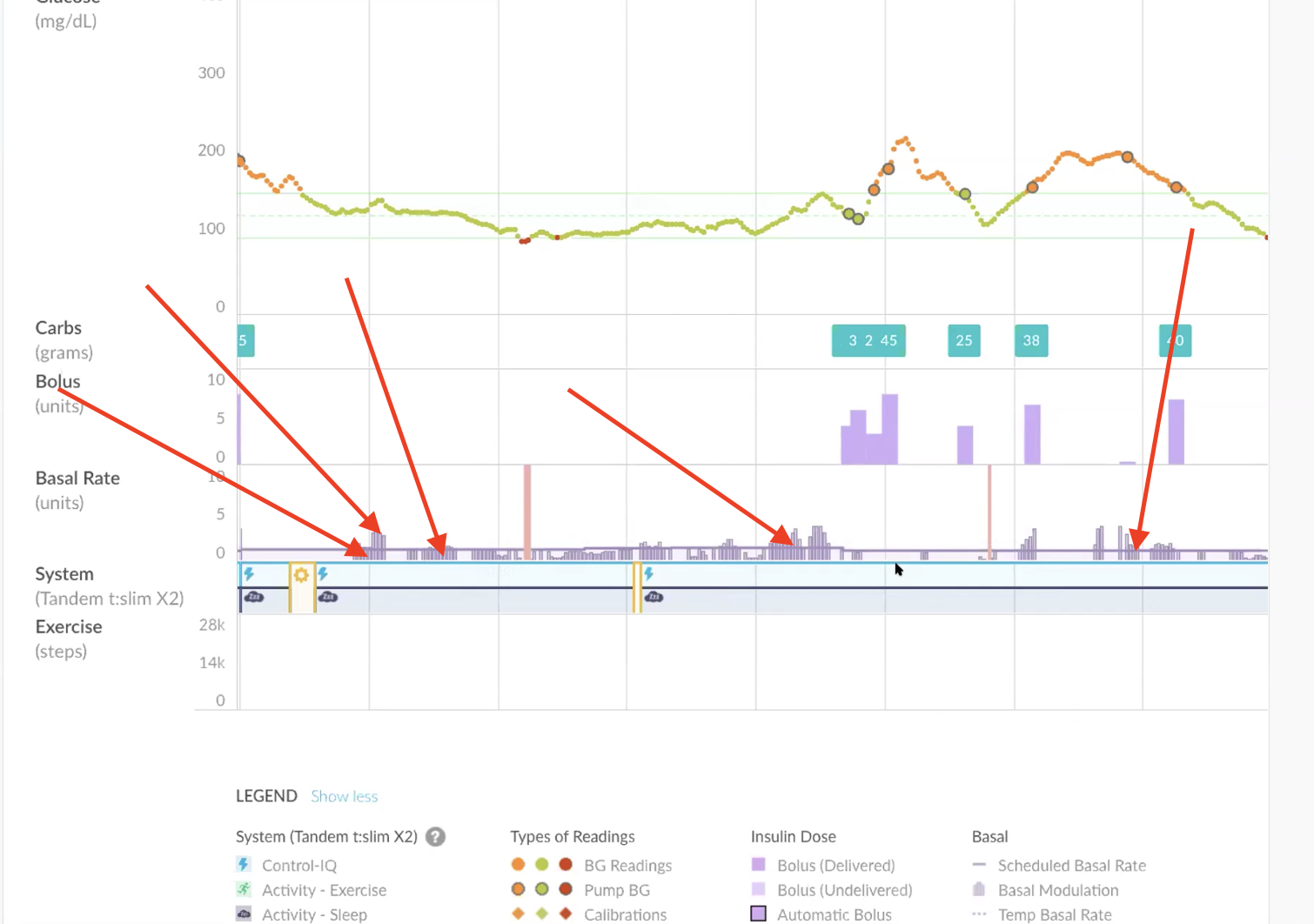

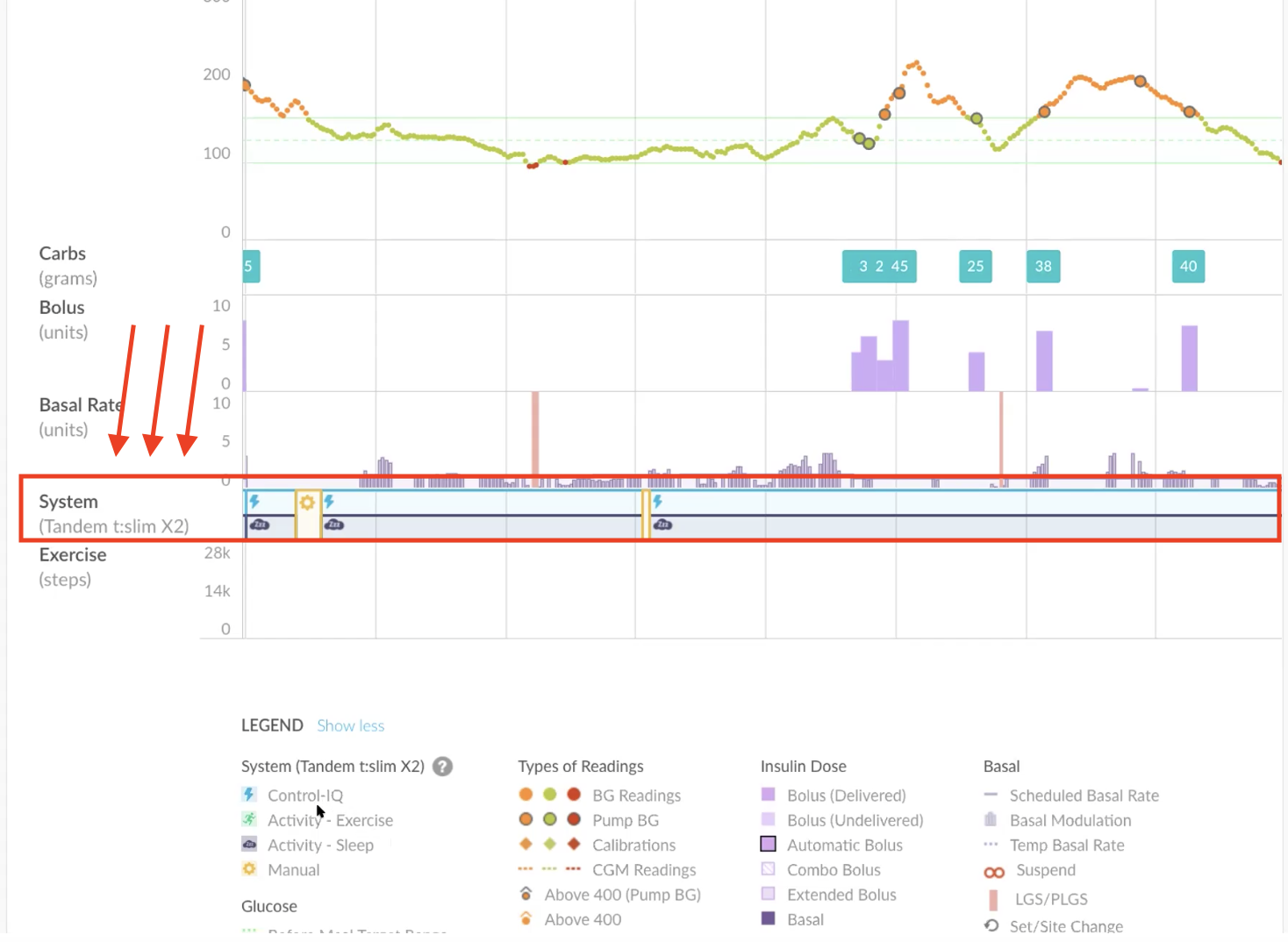

Additionally, Control IQ data will now be visualized within your single-day Graphs view only. When you navigate to your Graphs view, select a particular day to view the Control IQ data on a more granular level. A new row will appear in your Overview graph, which will be listed as System above the device name (Tandem t:slim X2).
If the insulin pump detects that readings are in range, the insulin pump will operate according to the scheduled basal programs in place. As the insulin pump receives readings that you are going out of range, the algorithm for Control IQ kicks in to titrate insulin in 5-minute increments. These are displayed as the vertical bars that appear along the top of the System row.
At the bottom of the Graph page for a particular day, you will see the same System Details box that appears in your 'Summary' tab- outlining the metrics for Control IQ usage during that day.
Viewing Basal IQ Data
Tandem Basal IQ technology uses CGM values to help reduce the frequency and duration of low-glucose events by automatically adjusting insulin delivery.

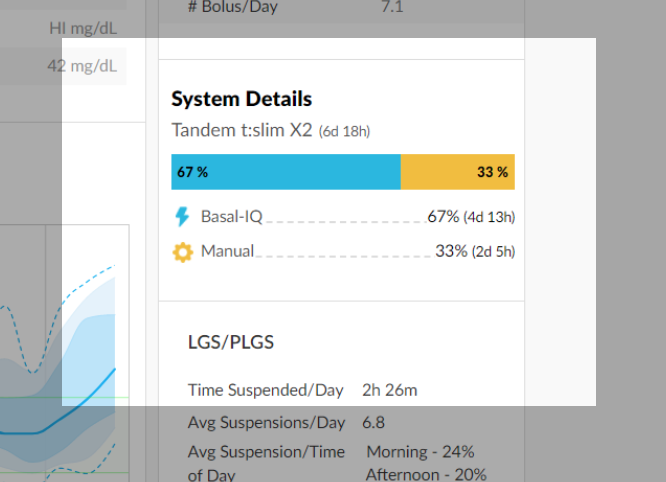

When the Glooko platform detects Basal IQ data enabled on the uploaded insulin pump - a new data widget will appear in your Glooko® Summary page, listed as System Details. These are the Basal IQ use metrics for the selected time period in your Summary tab.

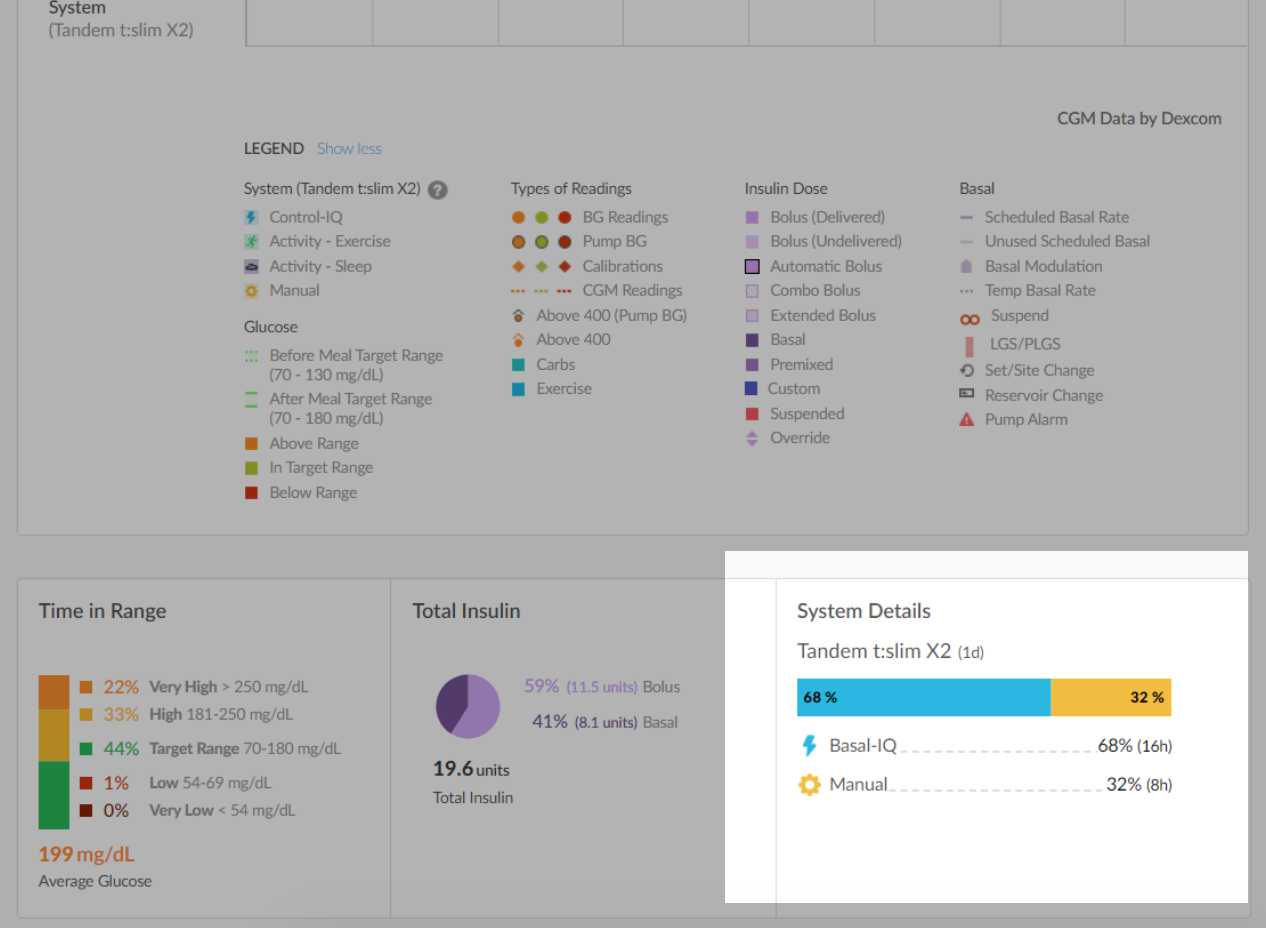

Additionally, Basal IQ data will now be visualized within your single-day Graphs view only. When you navigate to your Graphs view, the System Details widget will now display below the graph, alongside the Time in Range and Total Insulin statistics.
If you have any additional questions regarding your Control IQ data, please contact our Support Team.
