Depending on the type(s) of insulin data available in your Glooko account, your insulin data may display differently.
In general, insulin data synced to your Glooko account from a connected insulin pump or insulin pen groups under the header Insulin - Device. Insulin data manually-entered to your account from the Glooko Mobile App groups under the header Insulin - Manual.
Let's learn how data is displayed for:
Note: For more information on how insulin averages are calculated, please see our article How are insulin averages calculated in Glooko®?
A single type of insulin
If you only have insulin data from an insulin pump or pen in your account, your insulin data groups under the header Insulin - Device, along with the name of the source device(s). If you only have manually entered insulin data in your account, your insulin data groups under the header Insulin - Manual.

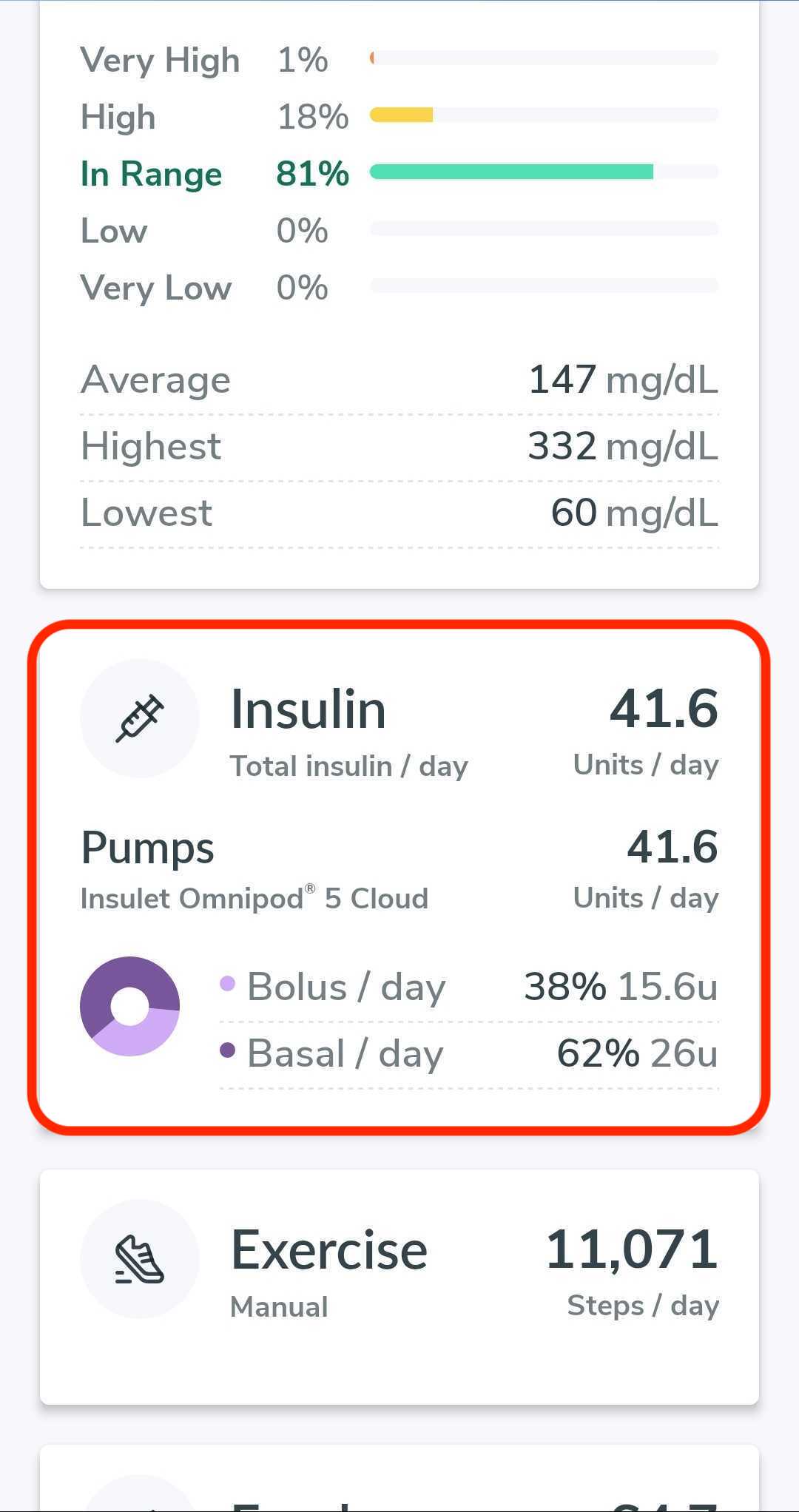

Home screen (mobile app)
On the Home screen of your Glooko mobile app, Insulin synced from your pump and insulin synced from a Smart Pen or manually-entered will be displayed separately. Insulin from your pump will display above your manually entered or smart pen insulin.

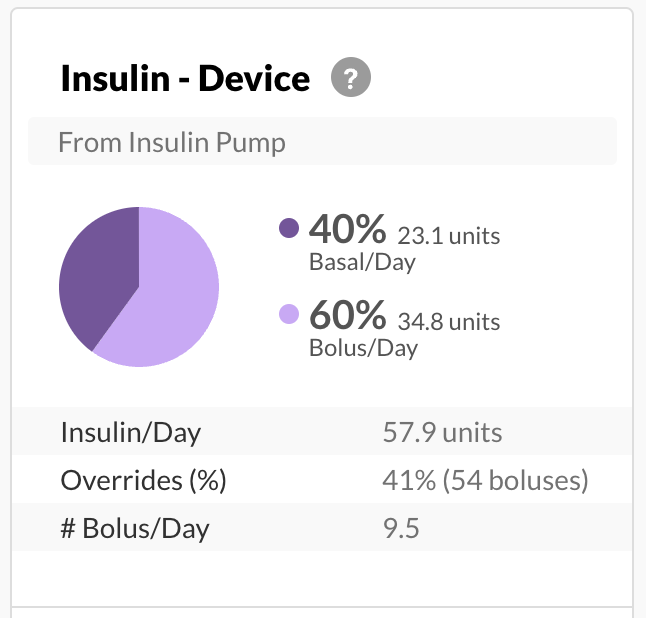

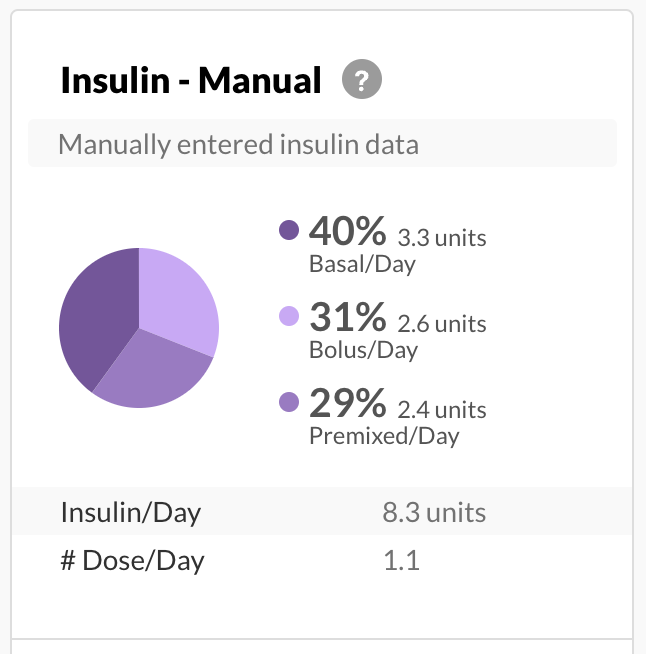

Summary screen (web app)
On the Summary screen of your Glooko web app, your insulin data will be grouped by Basal, Bolus and Premixed insulin - and color-coded accordingly - for the timeframe selected..

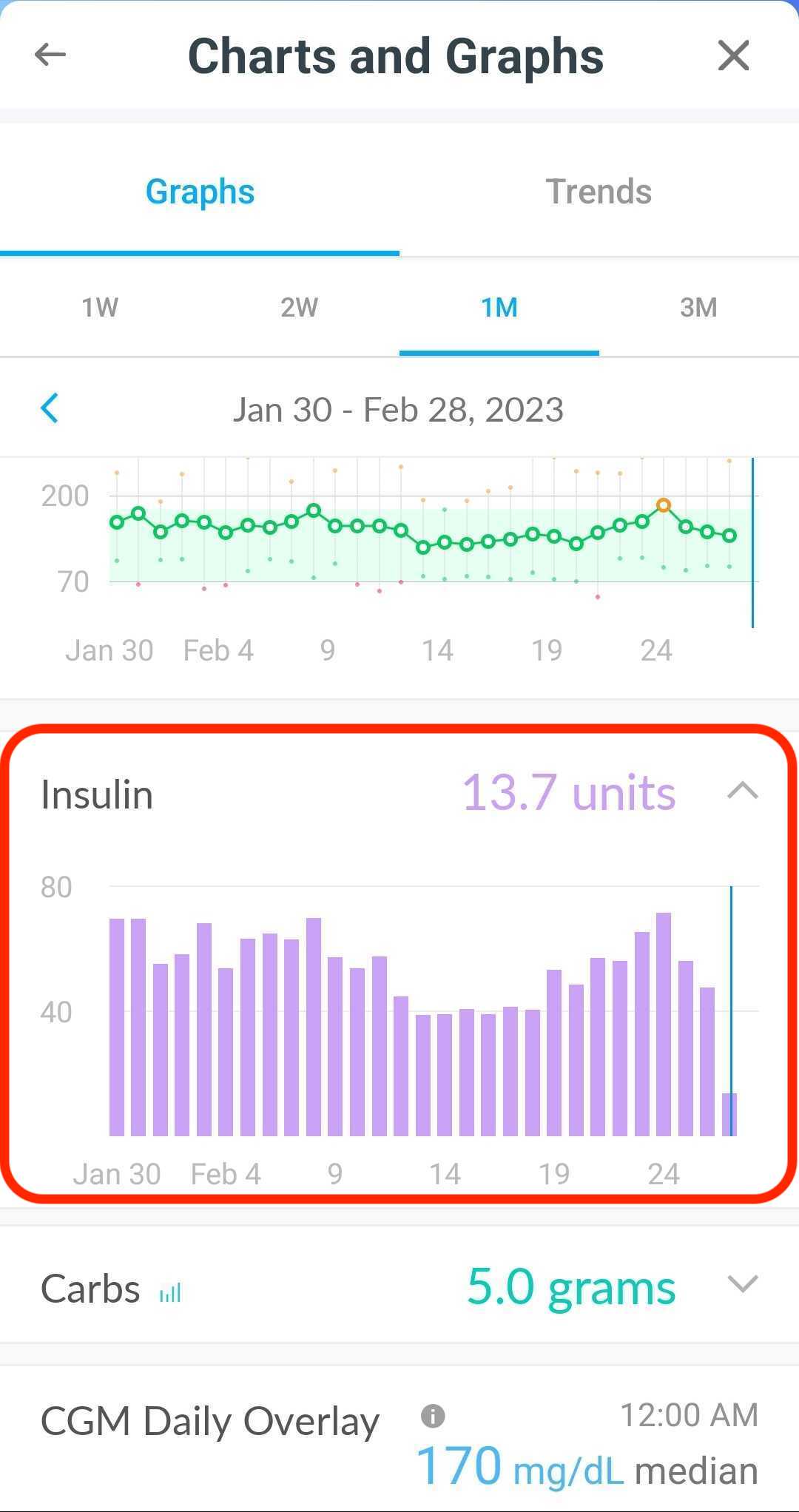

Graphs (mobile app)
In graphs in your Glooko mobile app, your insulin data will all be displayed together for the timeframe selected.
Charts and graphs (web app)
In charts and graphs in your Glooko web app, your insulin data will be displayed on a single line. If the insulin data is synced from insulin pumps and/or pens, the chart will indicate Insulin - Device. If the insulin data is only manually entered, the chart will indicate Insulin - Manual. Color-coding will be used to differentiate between Basal, Bolus and Premixed insulin for the timeframe selected.
Multiple types of insulin
If you have insulin data from an insulin pump and/or pen along with manually entered insulin data in your Glooko account, your insulin pump and insulin pen data will be displayed as Insulin - Device while any manually-entered insulin data will be displayed as Insulin - Manual.
Home screen (mobile app)
On the Home screen of your Glooko mobile app, Insulin synced from your pump, insulin synced from a Smart Pen, and manually-entered will be displayed on separate cards, indicating the source device for the data. Insulin from your pump will display above your manually entered or smart pen insulin.
Summary screen (web app)
On the Summary screen of your Glooko web app, your Combined Daily Dose of insulin will be displayed at the top, displaying an overview of insulin data from all entry methods (pump, pen, and/or manually entered). Within Combined Daily Dose:
- Bolus Calculations include bolus insulin entries from insulin pumps and manual short-acting insulin entries
- Basal Calculations include basal insulin entries from insulin pumps and manual long-acting insulin entries
- Premixed calculations include manual entries of premixed insulin.
The Insulin - Device section contains insulin data synced to Glooko from any insulin pump(s) or pen(s).
The Insulin - Manual section contains insulin data manually added to Glooko from the Glooko mobile app.
Graphs (mobile app)
In graphs in your Glooko mobile app, your insulin data will all be displayed together for the timeframe selected.
Charts and graphs (web app)
In charts and graphs in your Glooko web app, your Insulin - Device and Insulin - Manual data will be displayed on two separate lines. Hovering over the insulin bars displays a tooltip with additional information about the source device(s) and the amount of insulin received from each.
Color-coding will be used to differentiate between Basal, Bolus and Premixed insulin for the timeframe selected.
